Workspace Export Guide⚓︎

This tutorial explains how to directly export a dataset in .osm format from Workspaces.

For a list of all guides on the TCAT Wiki, refer to the Guides List.

Instructions⚓︎

1. Determine your environment⚓︎

1. Prod: portal.tdei.us + workspaces.sidewalks.washington.edu

2. Stage: portal-stage.tdei.us + workspaces-stage.sidewalks.washington.edu

3. Dev: portal-dev.tdei.us + workspaces-dev.sidewalks.washington.edu

2. Find your API key⚓︎

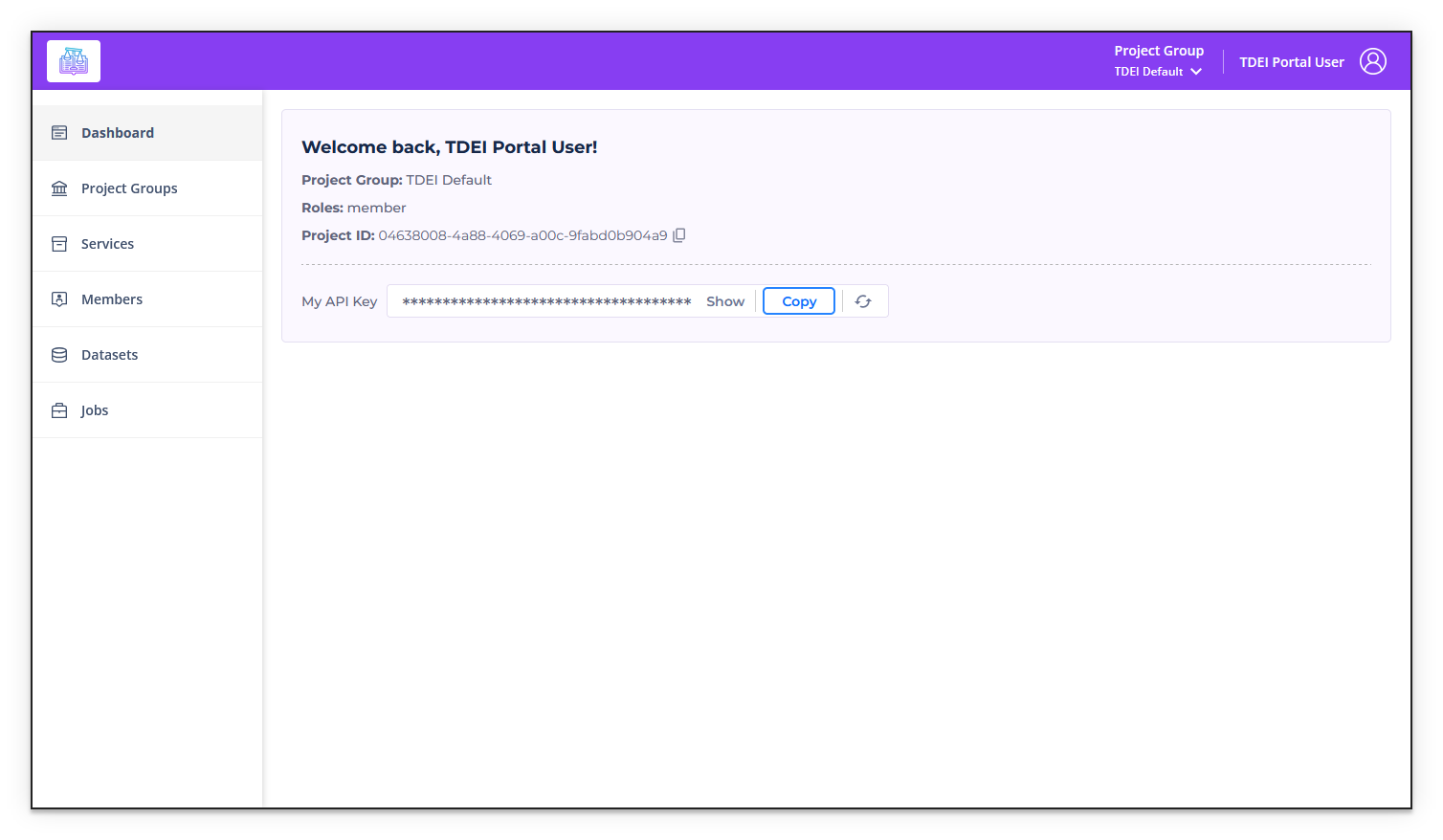

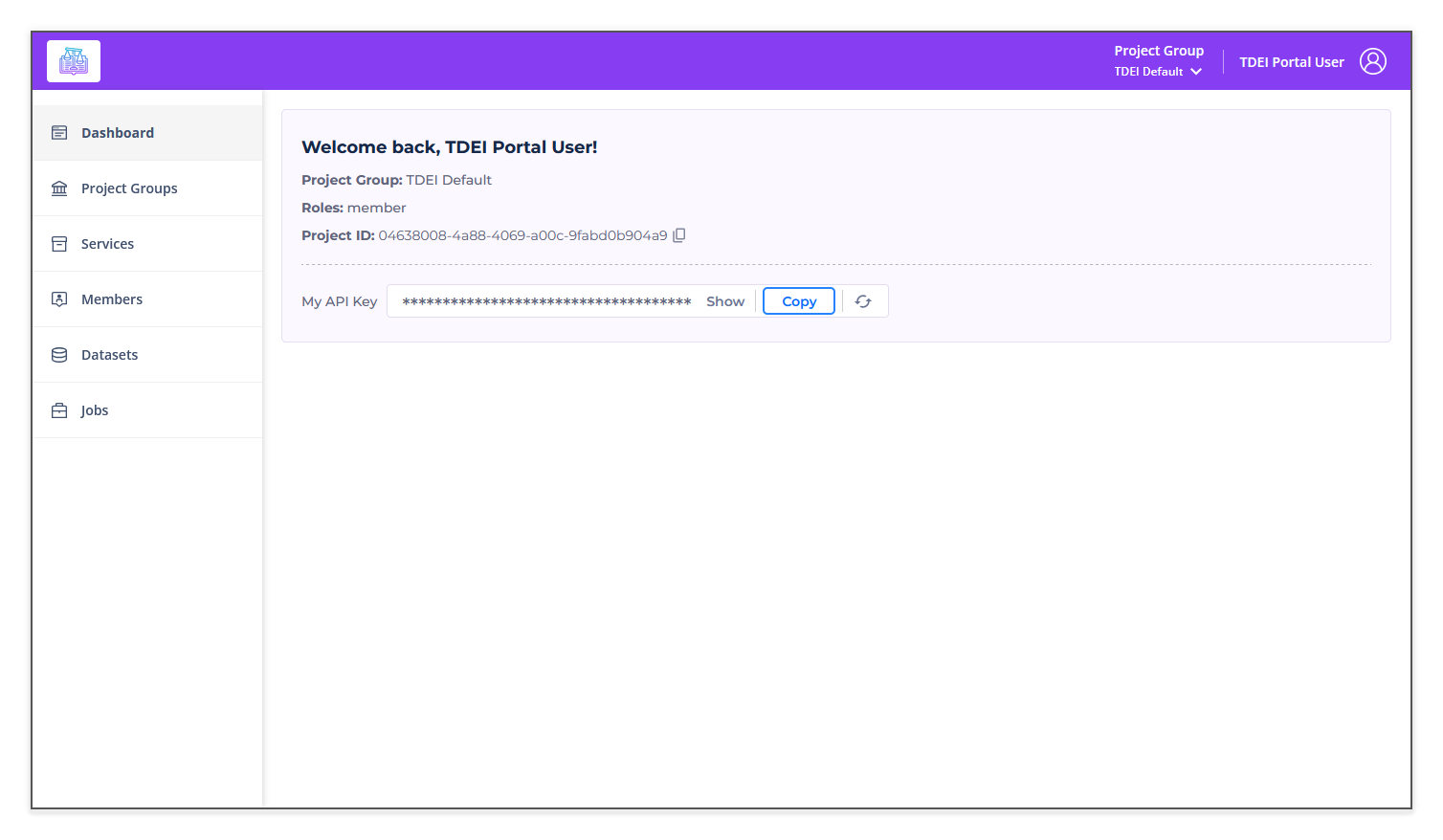

1. Log in and navigate to the Dashboard section of your environment's TDEI Portal

3. Find the Workspace ID⚓︎

1. Extract the ID from the Workspace link, for example 1074:

   https://workspaces-stage.sidewalks.washington.edu/workspace/1074/settings

4. Export the Workspace⚓︎

Option 1: Workspace Export Utility (Recommended!)

1. Download the Workspaces Export Script from the TDEI Tools repository.

2. Run the script and follow the instructions.

Option 2: Manually Query the Workspaces API

1. Find the dataset's bbox

   1. In your browser, substitute the target Workspace ID and open:

      Example URL:

      https://osm.workspaces-stage.sidewalks.washington.edu/api/0.6/workspaces/1074/bbox.json

      Example output:

      {
          "min_lat": 47.6558706,
          "min_lon": -122.3134287,
          "max_lat": 47.6563239,
          "max_lon": -122.3122227
      }


2. Construct request URL with above bbox query output, in min_lon,min_lat,max_lon,max_lat format.

   https://osm.workspaces.sidewalks.washington.edu/api/0.6/map?bbox=-122.3134287,47.6558706,-122.3122227,47.6563239

3. In PowerShell: (replace TDEI_TOKEN with your copied API key, WORKSPACE_ID with the Workspace ID, QUERY_URL with the URL containing the bbox, and FILE_NAME with your desired file name)

   It is recommended to follow a file name convention like export-ENV-ID-DATE-N.osm (example: export-stage-1074-20260417-01.osm)

   $headers = @{ Authorization = 'TDEI_TOKEN'; 'X-Workspace' = 'WORKSPACE_ID' }; Invoke-WebRequest -Uri 'QUERY_URL' -Headers $headers -OutFile 'FILE_NAME.osm'


   Example:

   $headers = @{ Authorization = 'a1b2c3d4-e5f6-g7h8-i9j0-k1l2m3n4o5p6'; 'X-Workspace' = '1074' }; Invoke-WebRequest -Uri 'https://osm.workspaces-stage.sidewalks.washington.edu/api/0.6/map?bbox=-122.3134287,47.6558706,-122.3122227,47.6563239' -Headers $headers -OutFile 'export-stage-1074-20260417-01.osm'


4. This outputs a FILE_NAME.osm file in the current directory.
