Quests

Quests⚓︎

This section explains how to create and configure quest questions, answer choices, AutoCapture attributes, numeric validation, and dependencies.

For a list of all guides on the TCAT Wiki, refer to the Guides List.

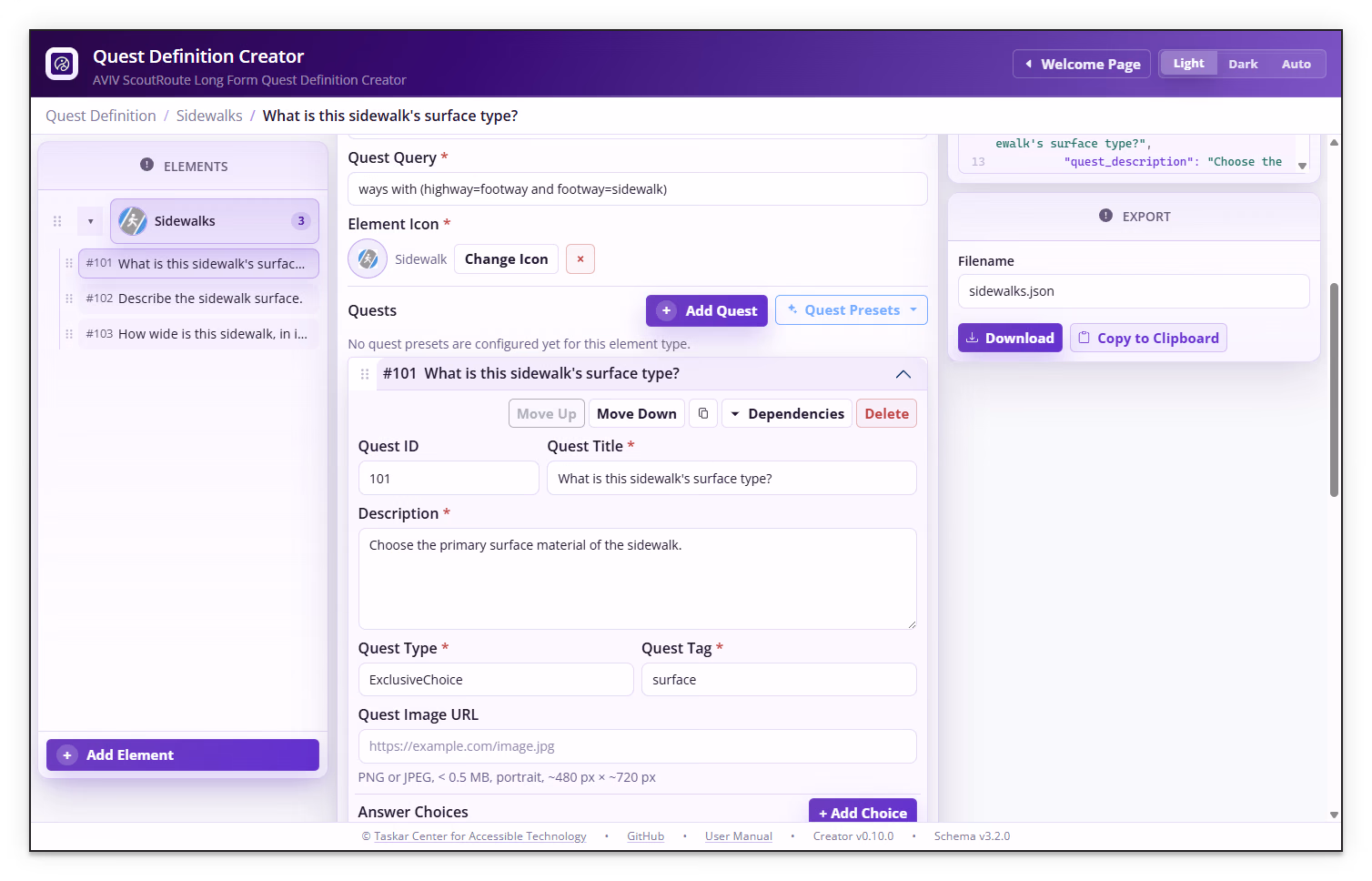

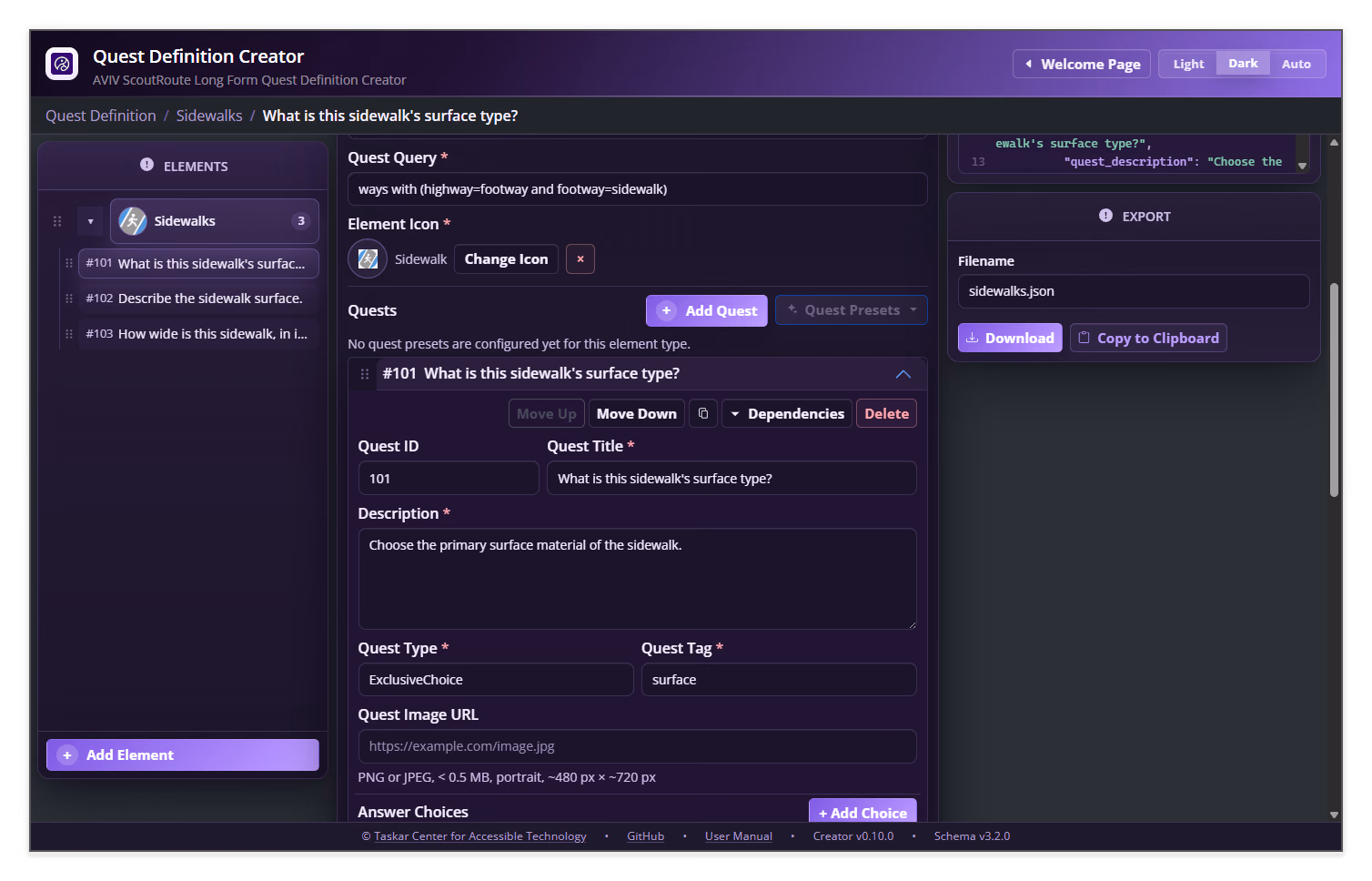

Add a Quest⚓︎

1. Select Add Quest under the element that should contain the question
2. Enter a numeric identifier in Quest ID and keep it distinct from the other quests in the definition
3. Enter the question in Quest Title
4. Enter instructions or context in Description
5. Select a value in Quest Type
6. Enter the answer tag in Quest Tag when the selected type requires one
7. Enter a URL in Quest Image URL only when the question needs an image

Quest Fields⚓︎

Choose a Quest Type⚓︎

The current Creator interface exposes these quest types:

Choose the type before configuring type-specific fields. The Creator removes fields that do not apply to the selected type from the JSON Preview. AutoCapture is currently limited to sidewalks and iOS devices with LiDAR sensors.

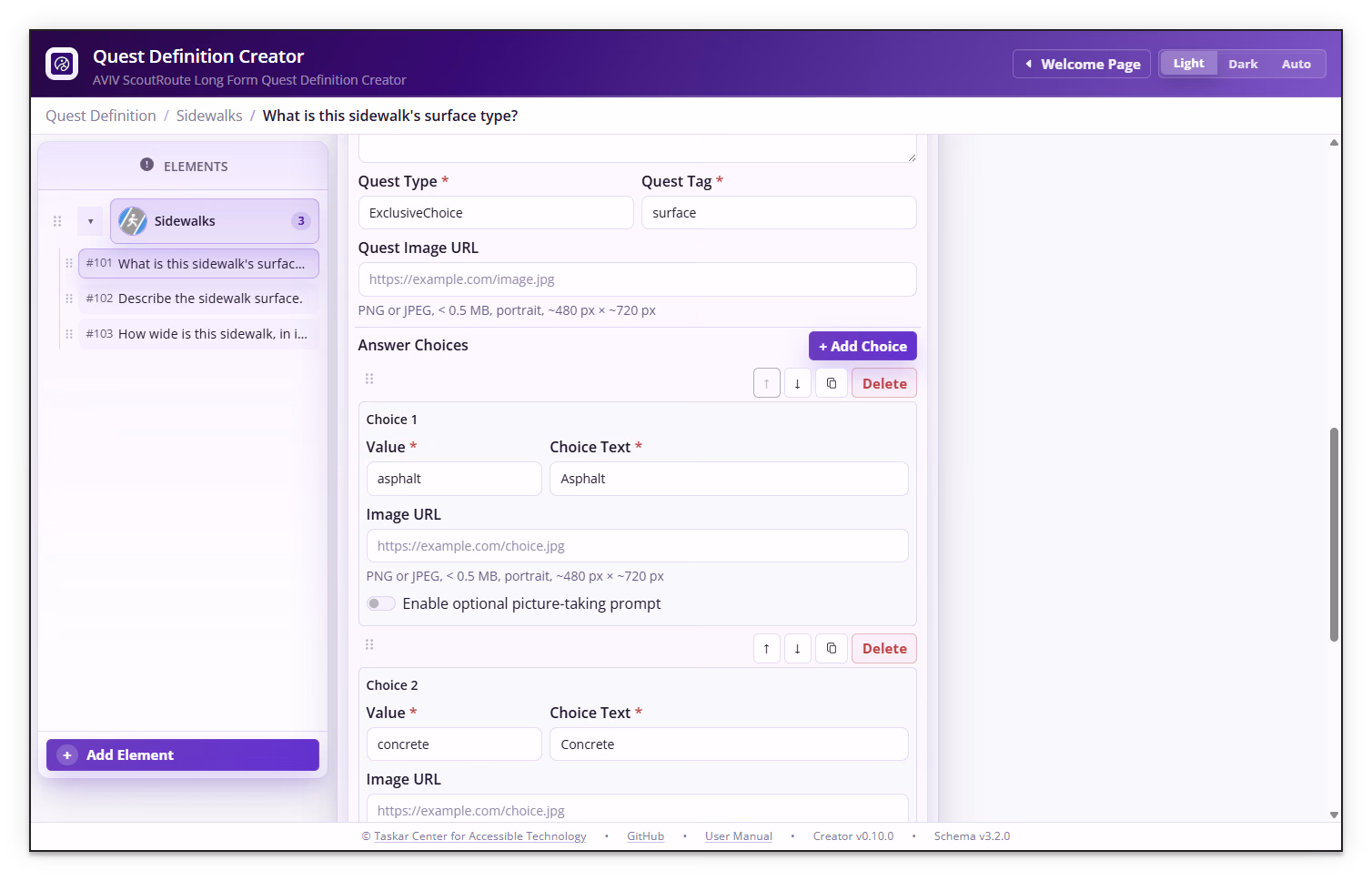

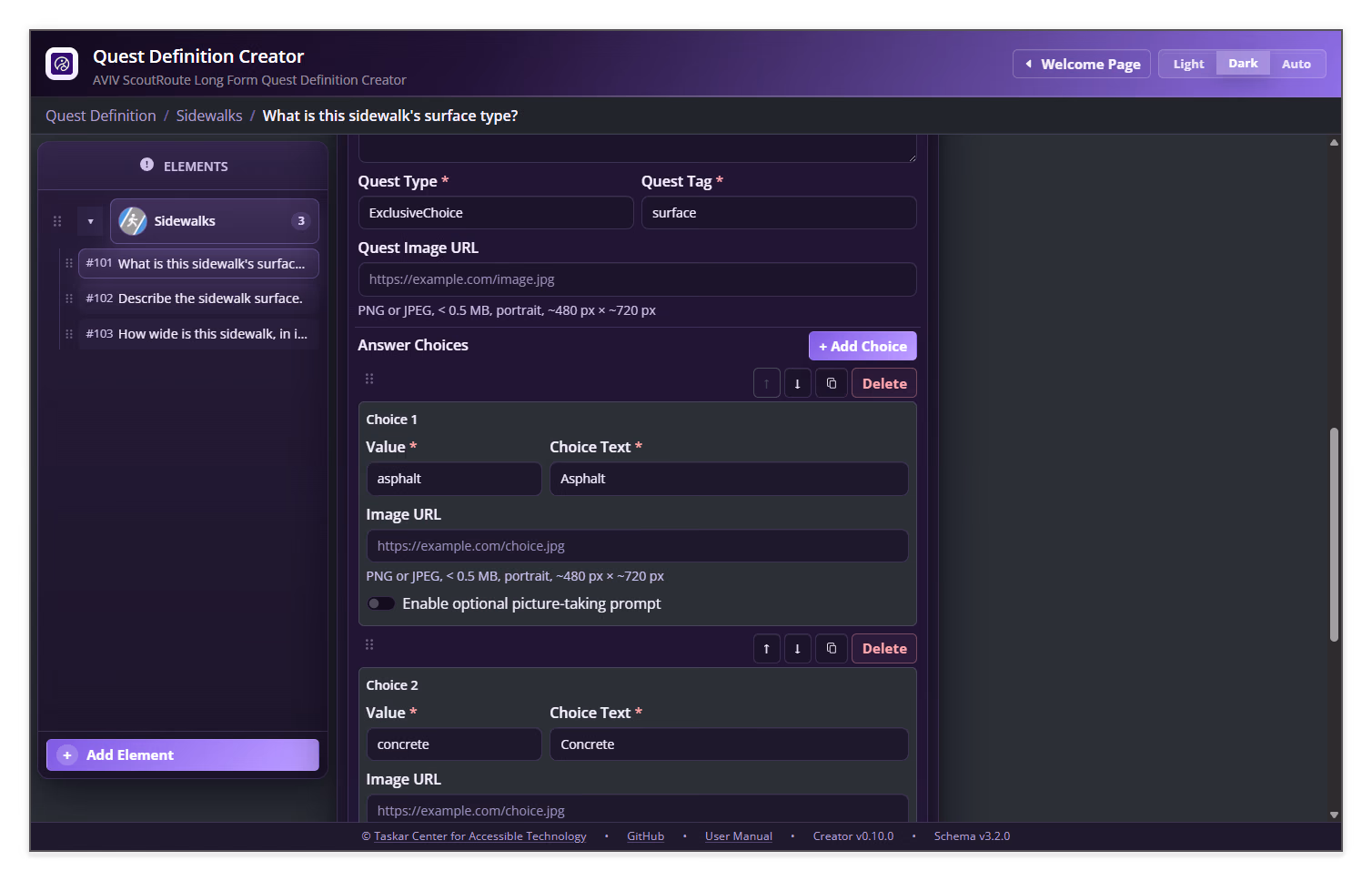

Configure Answer Choices⚓︎

ExclusiveChoice and MultipleChoice quests use answer choices.

1. Select + Add Choice
2. Enter the stored answer in Value
3. Enter the contributor-facing label in Choice Text
4. Enter an optional image URL in Image URL
5. Enable Enable optional picture-taking prompt when that answer should offer a picture-taking step
6. Use Move choice up, Move choice down, or Delete choice to organize the choices

The Value and Choice Text fields are required. Keep the stored values stable because dependencies refer to them.

Set Numeric Validation⚓︎

For a Numeric quest, use Numeric Validation to limit accepted values:

1. Select Numeric from Quest Type
2. Enable Enable minimum when the answer needs a lower bound
3. Enter the lower bound in the number field that appears
4. Enable Enable maximum when the answer needs an upper bound
5. Enter the upper bound in the number field that appears
6. Explain the expected unit in Quest Title or Description

Check the range against the intended measurement and unit before exporting.

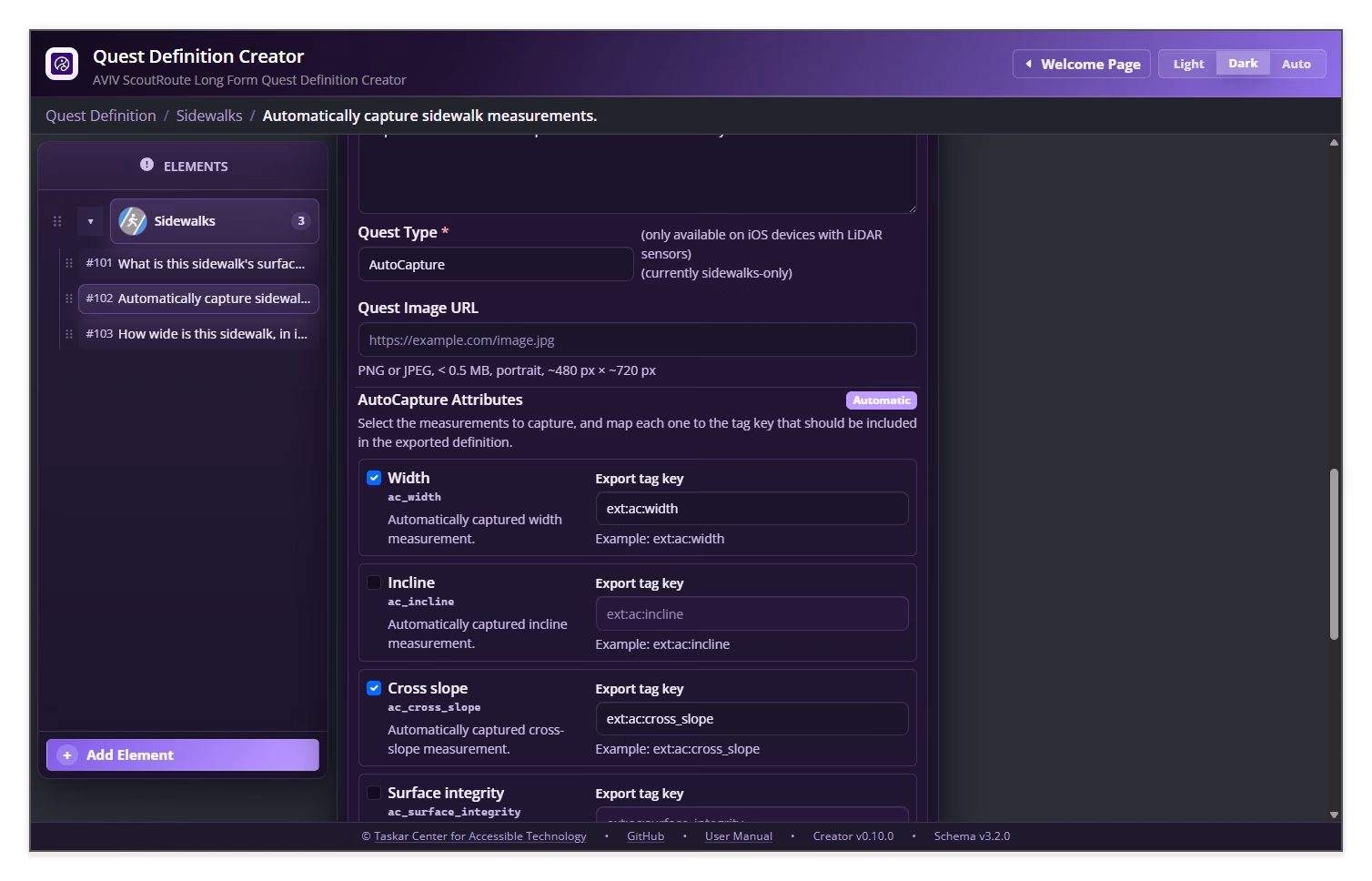

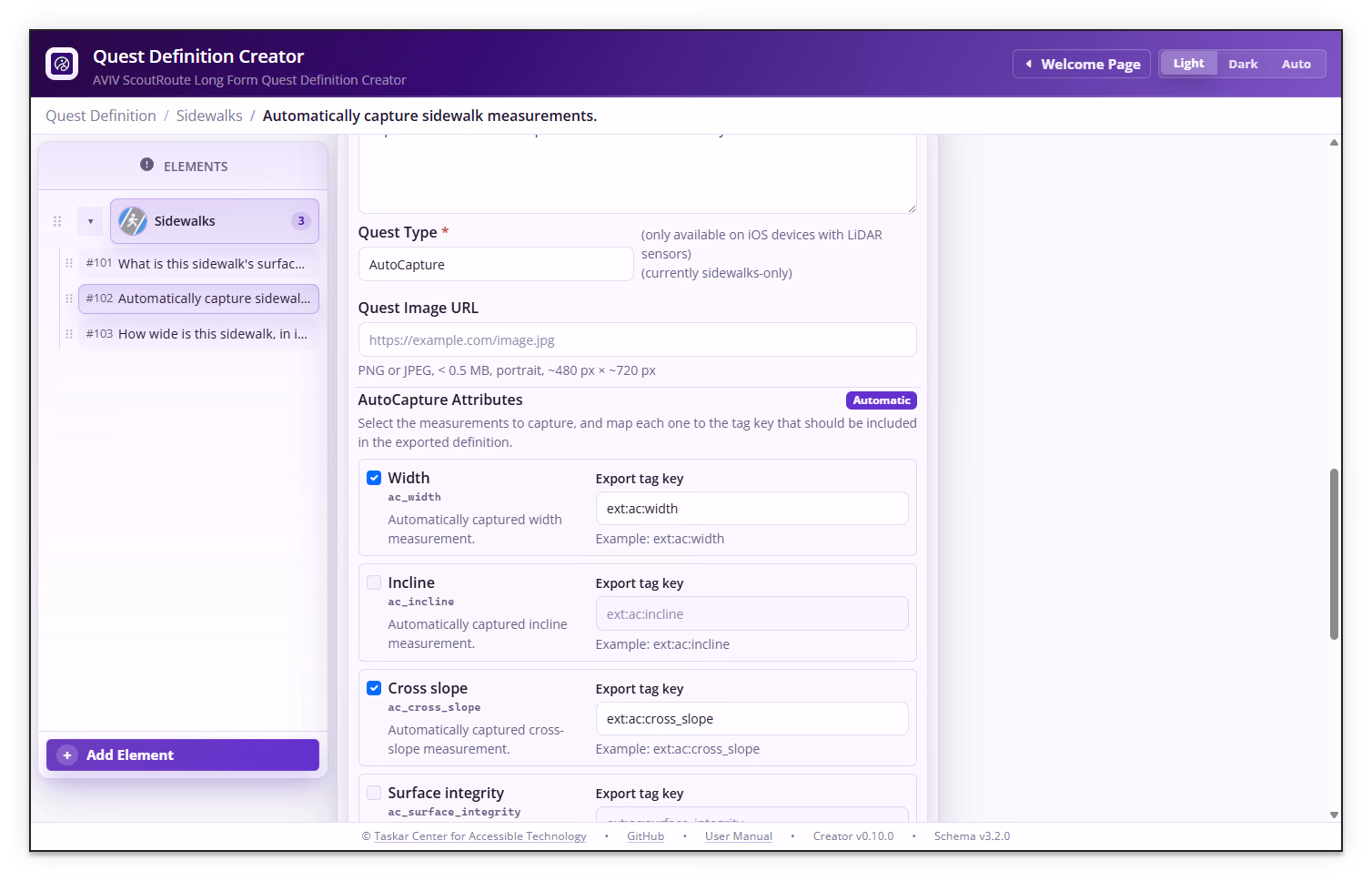

Configure AutoCapture Attributes⚓︎

An AutoCapture quest automatically captures selected measurements instead of asking the contributor to enter an answer. The Creator currently supports this quest type for sidewalks on iOS devices with LiDAR sensors.

1. Select AutoCapture from Quest Type
2. Select at least one measurement in AutoCapture Attributes
3. Review the default export tag key for each selected measurement, or enter the tag key required by the project
4. Review the auto_capture_attributes mapping in the JSON Preview

The Creator uses these attribute keys:

An AutoCapture quest uses these mappings instead of Quest Tag. Select at least one attribute and keep each export tag key non-empty to pass validation.

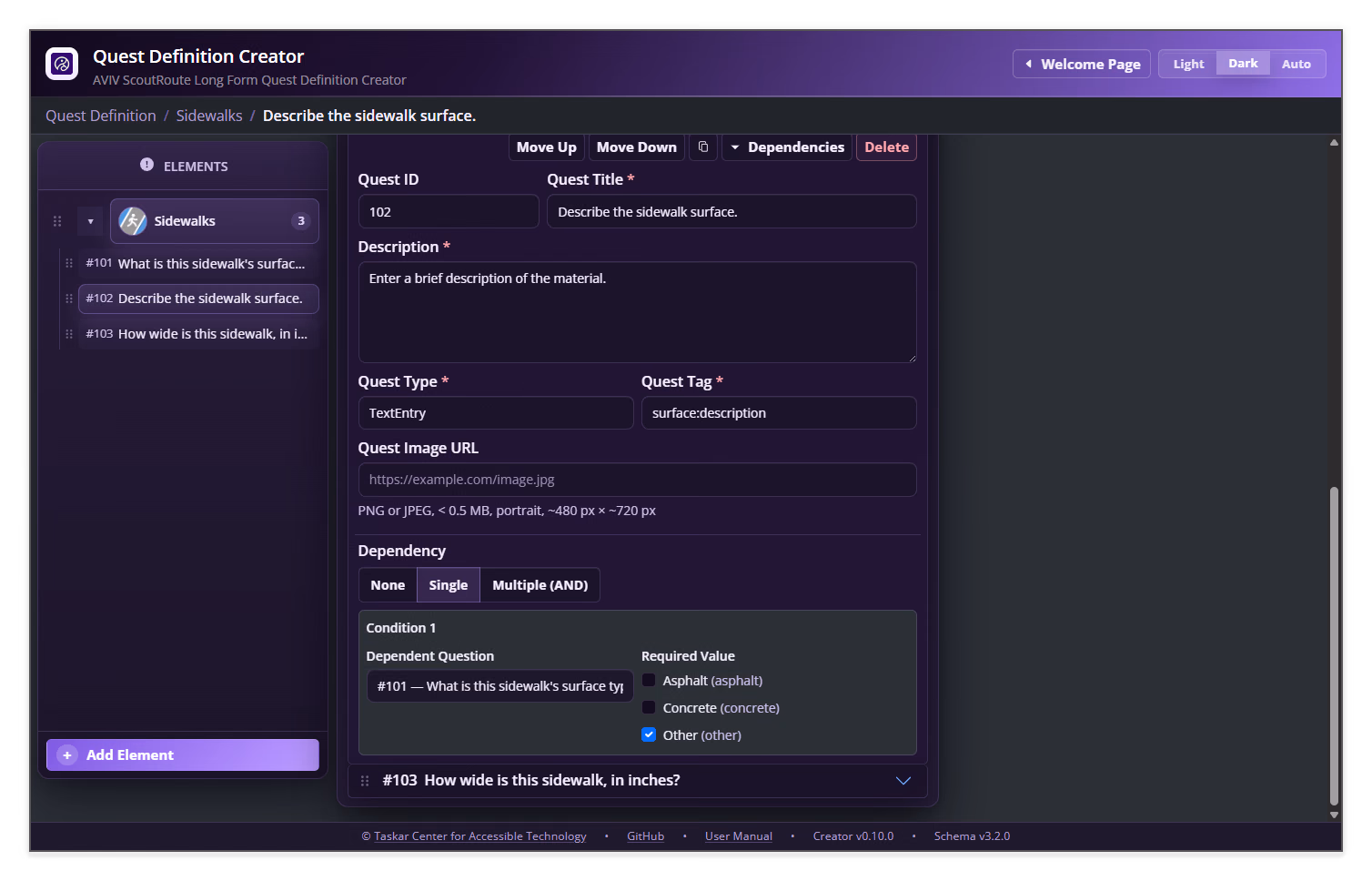

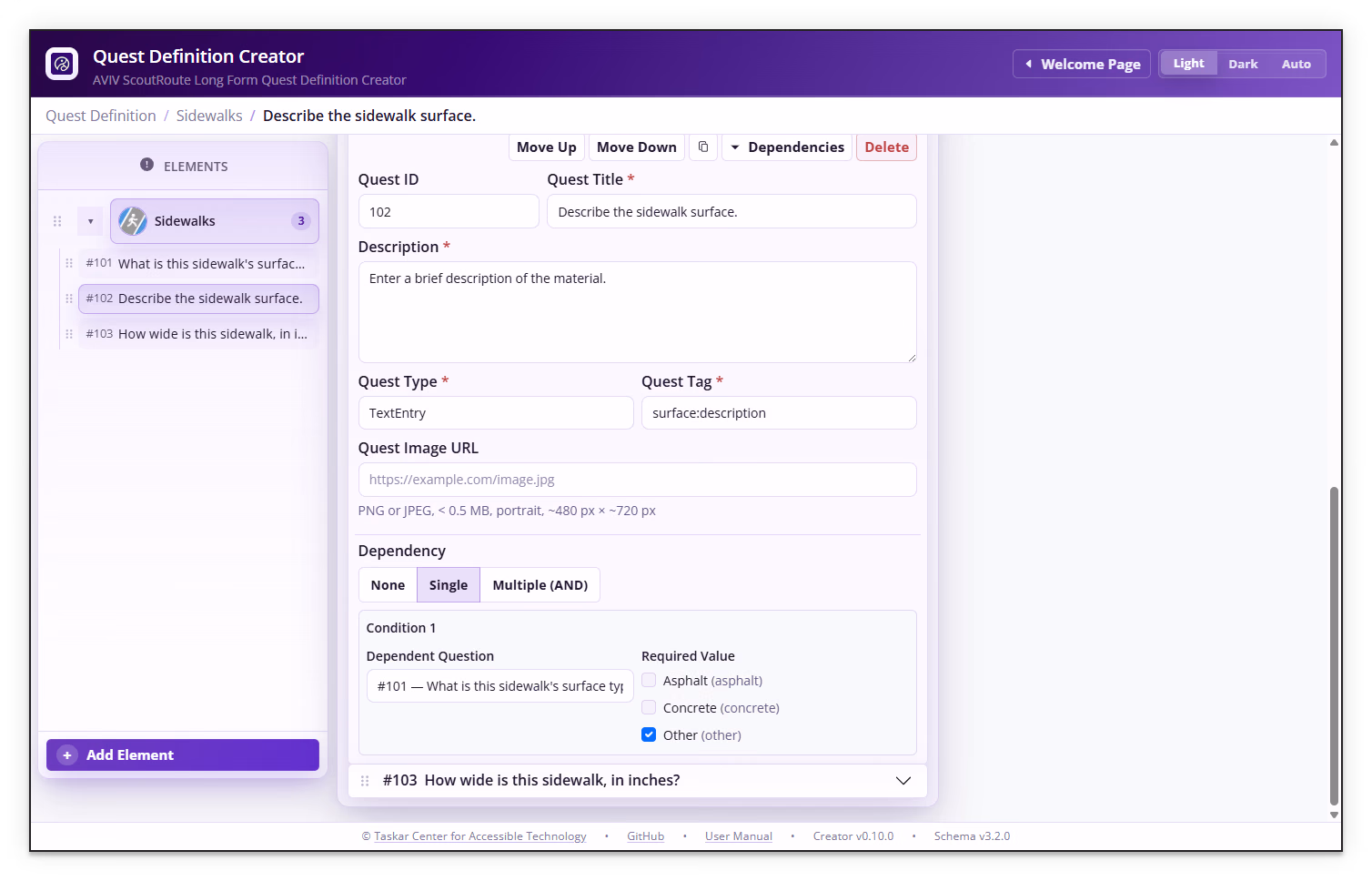

Add a Dependency⚓︎

A dependency displays a quest only when another quest in the same element has the required answer.

1. Add another quest to the same element before configuring the dependency
2. Select Single or Multiple (AND) under Dependency
3. For Single, choose the sibling quest in Dependent Question
4. Choose or enter the matching answer in Required Value
5. For Multiple (AND), add each condition and verify that all conditions must be satisfied
6. Review the dependency in the JSON Preview and Validation panel

Select None when the quest should not depend on another question. Use the stored Value from the dependent choice, not its display label, when defining a choice dependency.

Combine Answer Values in a Dependency⚓︎

Quest visibility is controlled by the quest_answer_dependency field, which the Creator populates from the Dependency settings. Within a single dependency condition, Required Value accepts either:

• A single value - the dependent quest's answer must equal that value
• Multiple values - the dependent quest's answer must equal any one of the listed values (an "OR" between the listed values)

Enter each accepted value in Required Value for that condition to use the OR behavior. For example, to show a quest only when a previous quest is answered example_1, example_2, or example_3, enter all three values in the same condition:

"required_value": ["example_1", "example_2", "example_3"]

Combine Multiple Dependency Conditions⚓︎

Multiple (AND) adds more than one condition to a single quest's quest_answer_dependency, each referencing its own Dependent Question. The quest shows only when every condition in the list is satisfied ("AND" between conditions). Combined with the OR behavior of multiple values within one condition, this lets a dependency list express (condition 1) AND (condition 2), where each condition can itself be (value A OR value B).

For example, this dependency list shows the quest only when quest 101 is answered value_a or value_b, and quest 102 is answered value_x:

"quest_answer_dependency": [
    { "question_id": 101, "required_value": ["value_a", "value_b"] },
    { "question_id": 102, "required_value": "value_x" }
]

Visible only if: (Q101 == "value_a" OR Q101 == "value_b") AND (Q102 == "value_x")

Every condition in a Multiple (AND) dependency list must pass; no condition is evaluated as an "or" against another condition in the same list.

Reorder or Remove Quests⚓︎

• Select Move quest up or Move quest down to change the order of questions within an element
• Select Delete quest to remove a question
• Select the quest heading to collapse or expand its fields

After changing a quest ID or order, review any dependencies that reference it.

Next Steps⚓︎

Continue to Presets and Custom Icons for optional reusable configuration, or go to Validation and Export when the definition is complete.
