Workspaces Export Guide

This guide explains how to directly export a dataset in .osm format from Workspaces.

For a list of all guides on the TCAT Wiki, refer to the Guides List.

---

Legend

1. Keyboard shortcut to press | Action

   (Shift + C) | Copy

2. Command to enter into terminal

   [someCommand --arguments <path>]

Instructions

1. Determine your environment

1. Prod: portal.tdei.us + workspaces.sidewalks.washington.edu

2. Stage: portal-stage.tdei.us + workspaces-stage.sidewalks.washington.edu

3. Dev: portal-dev.tdei.us + workspaces-dev.sidewalks.washington.edu

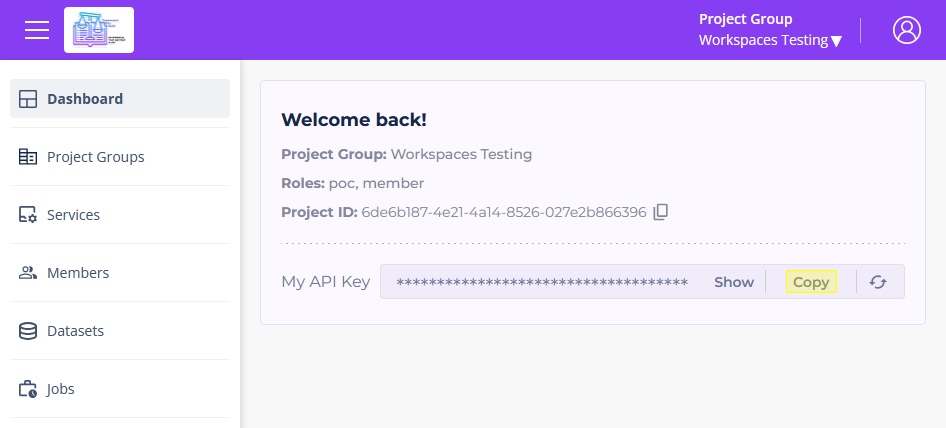

2. Find your API key

1. Log in and navigate to the Dashboard section of your environment's TDEI Portal

3. Find the Workspace ID

1. Extract the ID from the Workspace link, in this case 332:

   https://workspaces-stage.sidewalks.washington.edu/workspace/332/edit

4. Export the Workspace

Option 1: Workspace Export Utility (Recommended!)

1. Download the Workspaces Export Script from the TDEI Tools repository.

2. Run the script and follow the instructions.

Option 2: Manually Query the Workspaces API

1. Find the dataset's bbox

   1. In your browser, substitute the target Workspace ID and open:

      Example URL:

      https://osm.workspaces-stage.sidewalks.washington.edu/api/0.6/workspaces/332/bbox.json

      Example output:

      {"min_lat":47.6795959,"min_lon":-122.3789819,"max_lat":47.6795962,"max_lon":-122.3788774}

2. Construct request URL with above bbox query output, in min_lon,min_lat,max_lon,max_lat format.

   https://osm.workspaces.sidewalks.washington.edu/api/0.6/map?bbox=-122.33276367187499,47.66168780332917,-122.3272705078125,47.66538735632654

3. In PowerShell: (replace TDEI_TOKEN with your copied API key, and replace FILE_NAME with your desired file name)

   It is recommended to follow a file name convention like export-ENV-ID-DATE-N.osm (example: export-stage-332-20250721-1.osm)

   [$headers = @{ Authorization = 'TDEI_TOKEN'; 'X-Workspace' = '332' }; Invoke-WebRequest -Uri 'https://osm.workspaces-stage.sidewalks.washington.edu/api/0.6/map?bbox=-122.3789819,47.6795959,-122.3788774,47.6795962' -Headers $headers -OutFile 'FILE_NAME.osm']

4. This outputs a FILE_NAME.osm file in the current directory.
