Filter Dataset By BBox
Filter Dataset By BBox⚓︎
This page explains how to use the Filter Dataset By BBox job to extract a subgraph of a dataset within a bounding box.
Function⚓︎
Returns a subgraph of a dataset that falls within a specified bounding box, defined by west (longitude), south (latitude), east (longitude), and north (latitude) coordinates.

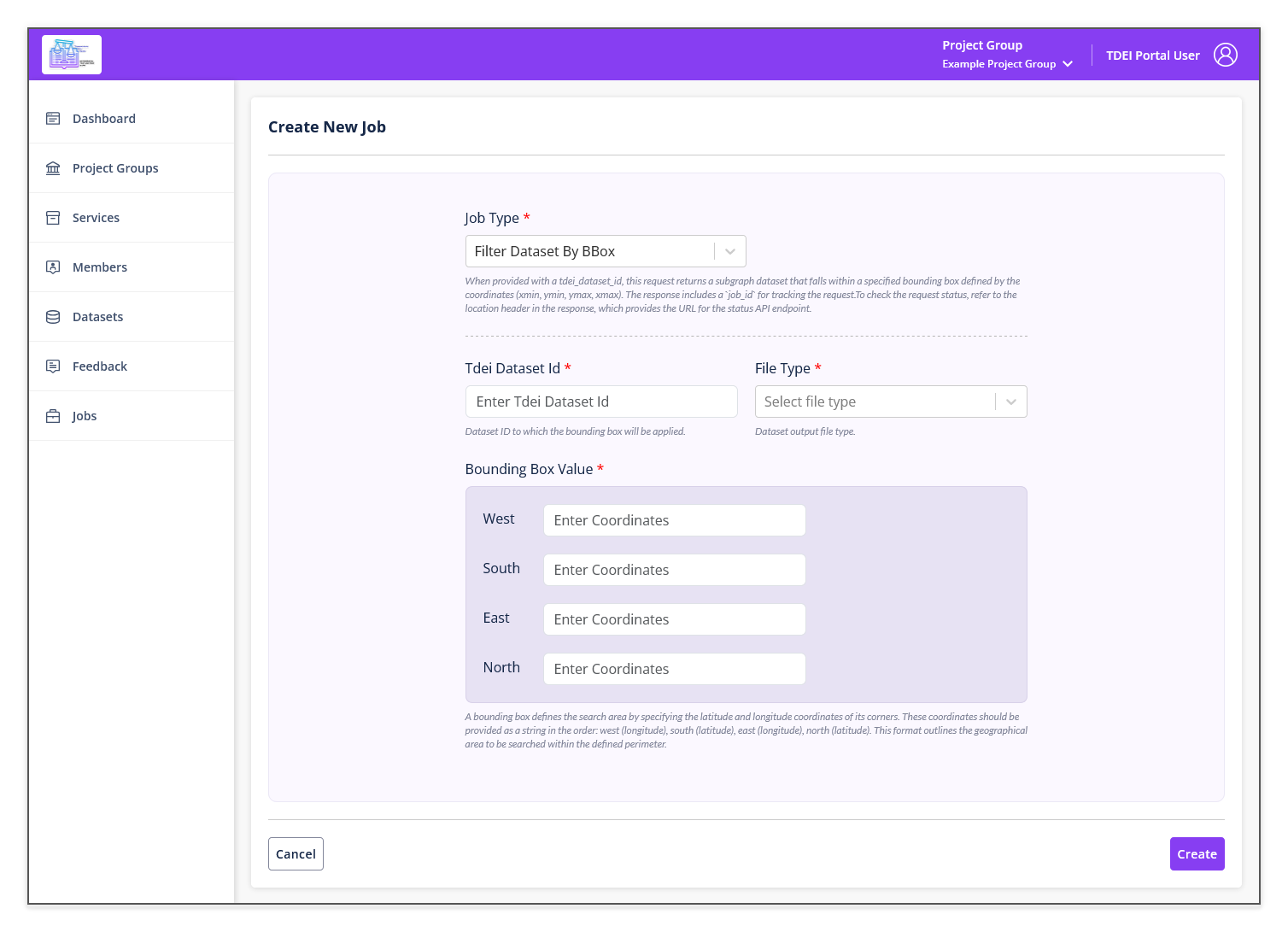

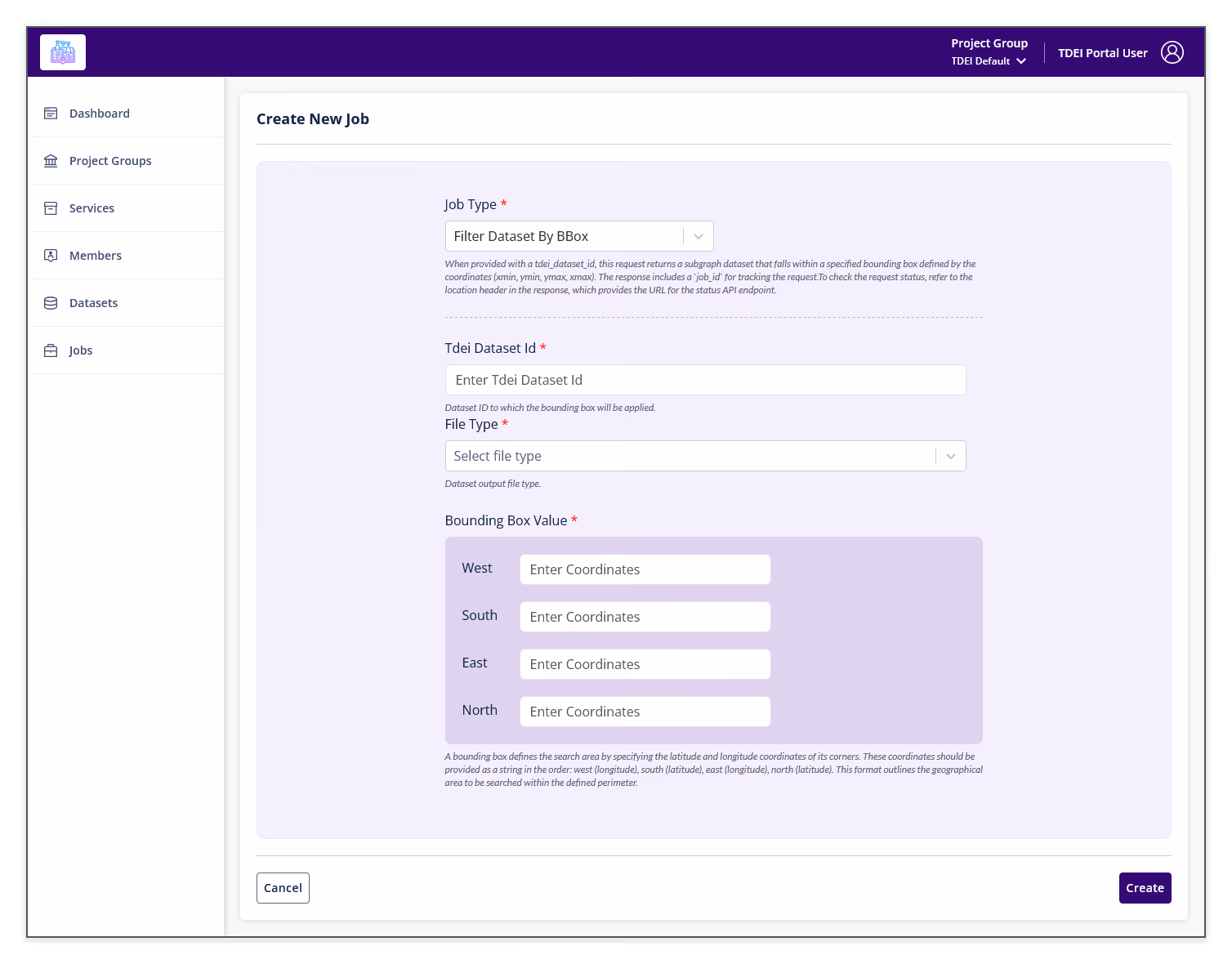

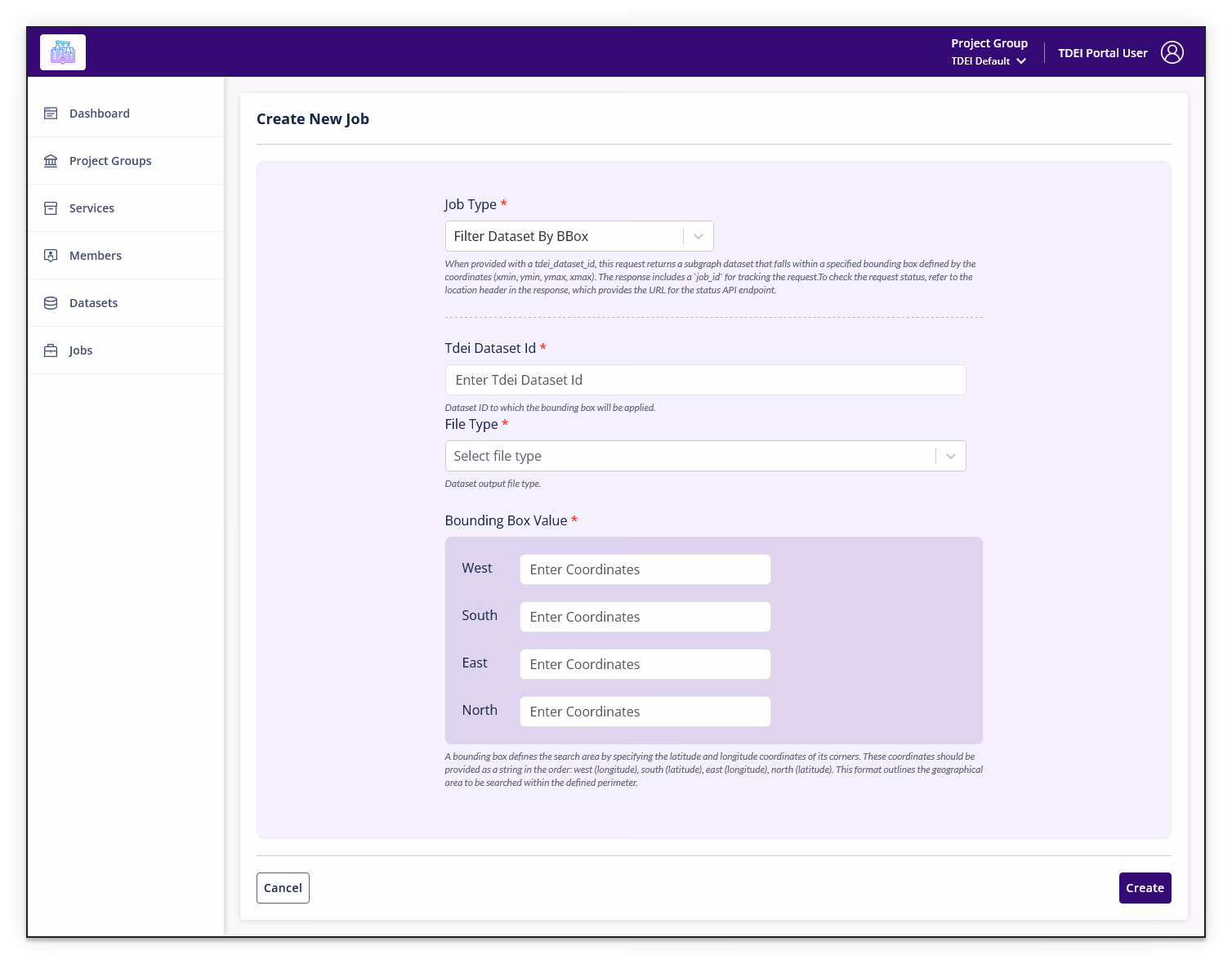

Job Creation Form⚓︎
| Field | Required | Description | Format / Options |
|---|---|---|---|
| TDEI Dataset Id | Yes | Dataset ID to which the bounding box will be applied | — |
| File Type | Yes | Dataset output file type | OSM or OSW |
Bounding Box Value (required):
| Coordinate | Description | Format |
|---|---|---|
| West | West coordinate (longitude) | Decimal degrees |
| South | South coordinate (latitude) | Decimal degrees |
| East | East coordinate (longitude) | Decimal degrees |
| North | North coordinate (latitude) | Decimal degrees |
Info
A bounding box defines the search area by specifying the latitude and longitude coordinates of its corners. These coordinates should be provided as a string in the order: west (longitude), south (latitude), east (longitude), north (latitude). This format outlines the geographical area to be searched within the defined perimeter.
Full job description
When provided with a tdei_dataset_id, this request returns a subgraph dataset that falls within a specified bounding box defined by the coordinates (xmin, ymin, xmax, ymax).
The response includes a job_id for tracking the request.
To check the request status, refer to the location header in the response, which provides the URL for the status API endpoint.
Select Create to submit the job. Select Cancel to return to the Jobs list.
Return to Jobs.
